Post-Installation Setup
Opengraph Settings

Opengraph Settings

OpenGraph is a protocol used by websites to control how their content is displayed when shared on social media platforms and messaging apps.

This section contains notes on updating the thumbnail-like images that appears when sharing the ACAP website URLs in social media like Meta and Twitter.

ℹ️

ACAP only display OpenGraph images on its production website hosted at (GitHub Pages) https://acap-bicol.github.io (opens in a new tab) to differentiate between the development and production websites.

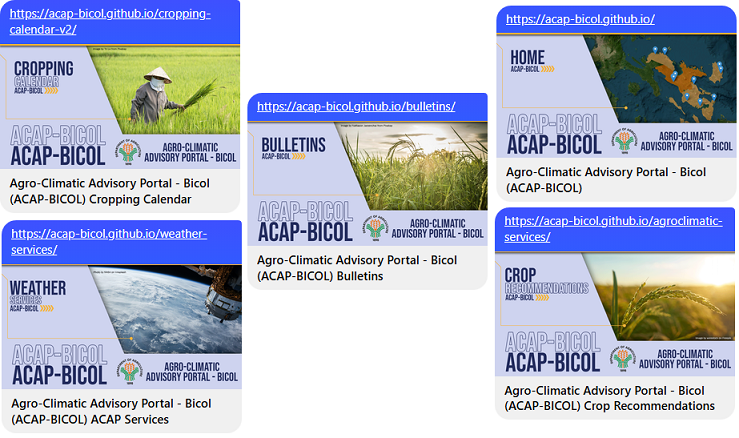

opengraph

OpenGraph / Meta Description

          • assets_dev.csv
    1. Open the /server/src/scripts/data/assets_dev.csv file.
    2. Select the row whose filename column is equals to "og_home".
      • Replace all "Bicol" text with the new region name in it's description column.

    OpenGraph Thumbnails

    Create New OpenGraph Images

    1. Take note of ACAP's public pages. These are pages which do not require login.

      • Home Page - / (index page)
      • ACAP Services - /weather-services
      • Cropping Calendar - /cropping-calendar-v2
      • Seasonal / 10-Day Recommendations - /agroclimatic-services
      • Bulletins PDF Download - /bulletins
      • Sesaonal Bulletins PDF Download - /bulletins/seasonal-outlook
      • 10-Day Bulletins PDF Download - /bulletins/weather
      • Special Bulletins PDF Download - /special-weather-forecast
      • Admin Login - /admin/login
      • Superadmin Login - /superadmin/login

    2. Create 1200 x 600 pixel picture banners for each public page mentioned in step #1.

    3. (Optional) For reference, you can use ACAP's OpenGraph Photoshop PSD template to create new OpenGraph images. Press the (left) DOWNLOAD button to download the file.

    1. A total of ten (10) new thumbnail files should be created, continuing from step #2. Let us use the Region 6 OpenGraph images only as an example to have preview samples of different OpenGraph images for each public page aside from Region 5. Press the (left) DOWNLOAD button to download and view the picture files.

      ℹ️

      These are only examples. Regions can and should use OpenGraph images that match and sync with their regions.

    Upload the OpenGraph Images

    1. Upload the ten (10) new OpenGraph to an online storage or hosting site, carrying on from Create New OpenGraph Images step #2. The online URLs of region-specific thumbnails should be publicly accessible after upload.

      đź’ˇ

      ACAP uploaded its OpenGraph images in Firebase Storage.

    2. Take note of the images' online URL after upload.

    Replace the OpenGraph URLs

          • assets_dev.csv

    1. Open and edit the /server/src/scripts/data/assets_dev.csv CSV file, preferably with Microsoft Excel or other software for editing tabular data, showing a visual overview of tables and columns.

    2. Replace the URL values under the url "CSV" column of the rows whose page column values are "og" and whose filename column content starts with "og_" prefix with the new OpenGraph image URLs from Upload the OpenGraph Images - step #2

      ⚠️

      Refer to the format, content, and structure of the /server/src/scripts/data/assets_dev.csv CSV file when replacing values.

      filenamepage namepublic page route
      og_homeHome Page/
      og_servicesACAP Services/weather-services
      og_calendarCropping Calendar/cropping-calendar-v2
      og_recommendationsSeasonal / 10-Day Recommendations/agroclimatic-services
      og_bulletinsBulletins PDF Download/bulletins
      og_bulletins_10day10-Day Bulletins PDF Download/bulletins/weather
      og_bulletins_seasonalSesaonal Bulletins PDF Download/bulletins/seasonal-outlook
      og_bulletins_typhoonSpecial Bulletins PDF Download/special-weather-forecast
      og_adminAdmin Login/admin/login
      og_superadminSuperadmin Login/superadmin/login

    Upload the New OpenGraph URLs

    Upload the new OpenGraph URLs (in the assets_dev.csv CSV file) to the development and production Firestore database.

    1. Update the server .env file with the production Firebase variables: FIREBASE_SERVICE_ACC and FIREBASE_PRIVATE_KEY.
    2. Run the server NPM script:
      npm run seed:11_assets
    3. Update the server .env file with the development Firebase variables: FIREBASE_SERVICE_ACC and FIREBASE_PRIVATE_KEY.
    4. Re-run the NPM script on step #2.
    5. Deploy to the production environment (after deploying first to the development environment since this is part of the deployment process) to view the updates on the live production site.

    Confirm the New OpenGraph Images

    1. Load the production website on a browser tab after successfully deploying to the production environment on the Upload the New OpenGraph URLs - step #5.

    2. Inspect the web page elements by right-clicking on the page and then selecting the Inspect option.

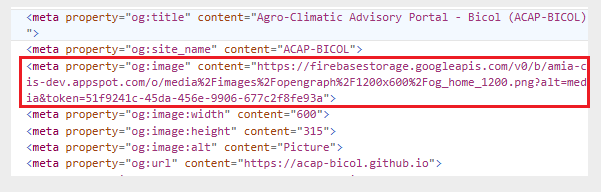

    3. Look for the <meta> property property="og:image" under the <head> tag. Its content attribute should contain the OpenGraph image URL encoded in the assets_dev.csv CSV file. For example:

      <meta property="og:image" content="https://firebasestorage.googleapis.com/v0/b/amia-cis-dev.appspot.com/o/media%2Fimages%2Fopengraph%2F1200x600%2Fog_home_1200.png?alt=media&token=51f9241c-45da-456e-9906-677c2f8fe93a">

      opegraph-meta-tag

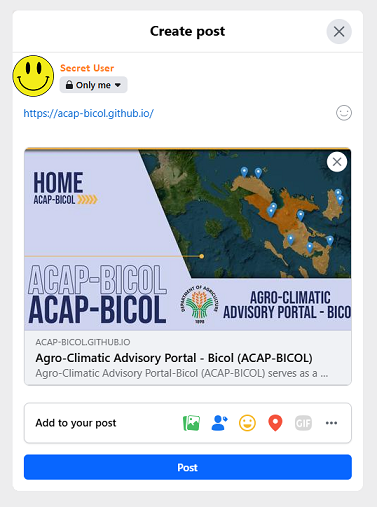

    4. Share one of the public web pages in social media, for example, in a Meta (Facebook) post. Observe if the new Opengraph thumbnails are visible.

      social-share

      đź’ˇ

      New OpenGraph thumbnails may take some time to display the latest pictures from some image hosting providers, such as Firebase Storage, depending on its server settings for maxAge in seconds, even if its new OpenGrapgh image URL is already visible in the <meta> tag from step #3.
